Norsk BokmålHF series pontoon floats
Constructions with HF pontoon floats
HF pontoons are unique that they can be used in two positions. When used vertically – increased longitudinal strength boats with a frame integrated inside pontoons could be constructed. Where as horizontally, HF pontoons could be used for low freeboard marinas.
Technical HF pontoon information

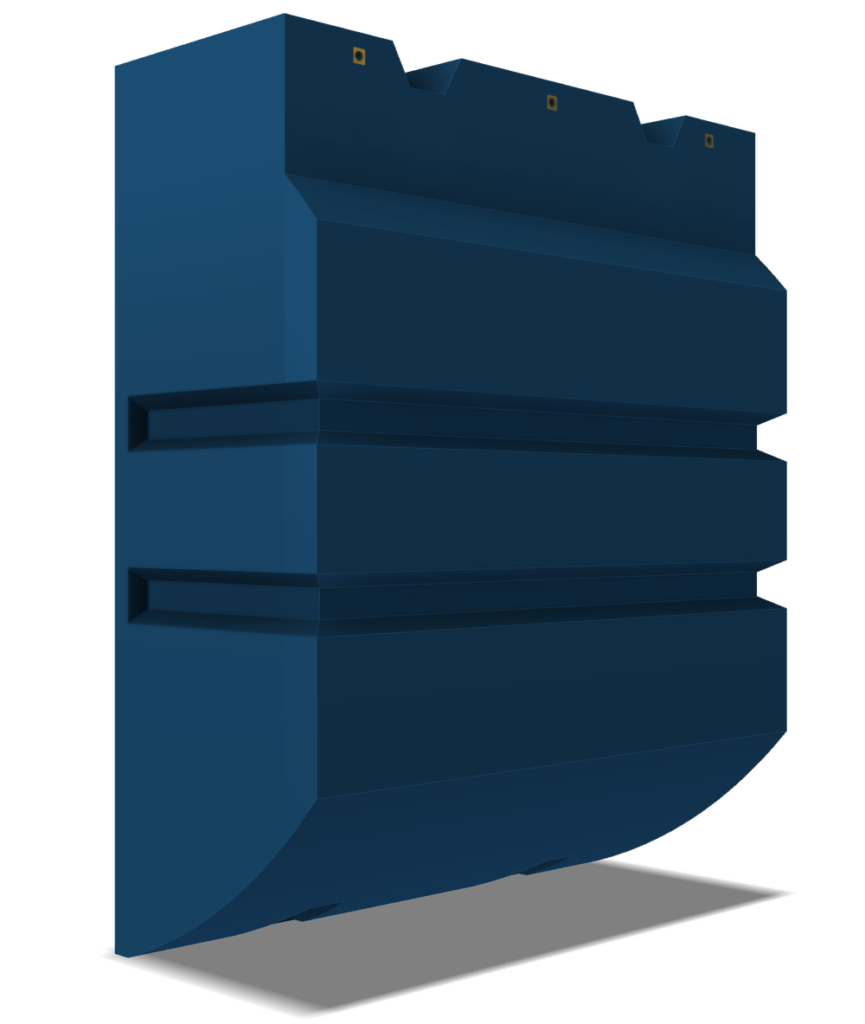

HFF type pontoon main information
Length/width/height – 800mm/ 375mm/ 1000mm
Volume – 170 l

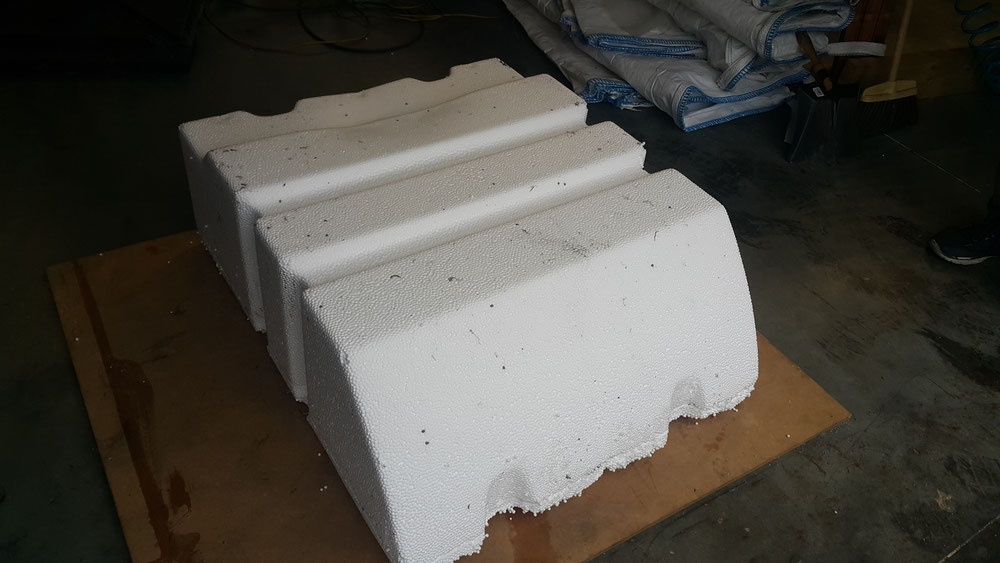

Mass – 15 kg (EPS foamed – 17kg)
Critical displacement vertically – 98 kg
Critical displacement horizontally – 81 kg
Critical draft vertically – 560 mm
Critical draft horizontally – 230 mm
UV protection – UV10 class minimum

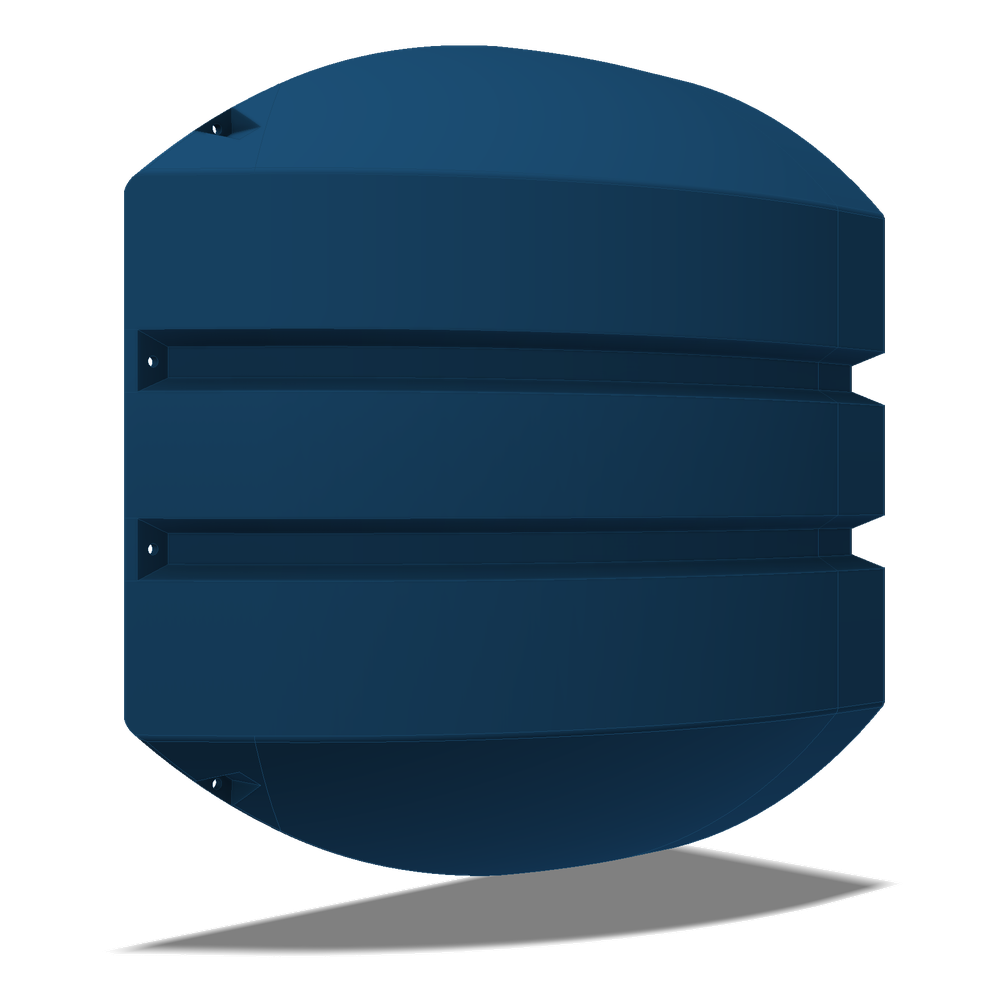

HFM type pontoon main information
Length/width/height – 800mm/ 375mm/ 1000mm
Volume – 255 l
Mass – 20 kg (EPS foamed – 20kg)
Critical displacement vertically – 138 kg
Critical displacement horizontally – 150 kg
Critical draft vertically – 560 mm
Critical draft horizontally – 230 mm
UV protection – UV10 class minimum
Full HF series pontoon technical documentation
The link includes geometry, technical, and transportation data as well as owners’ manual.
